HX-2S-01

Name: HX-2S-01
Brand: HESTORE
SKU: 100.479.58
Availability: InStock

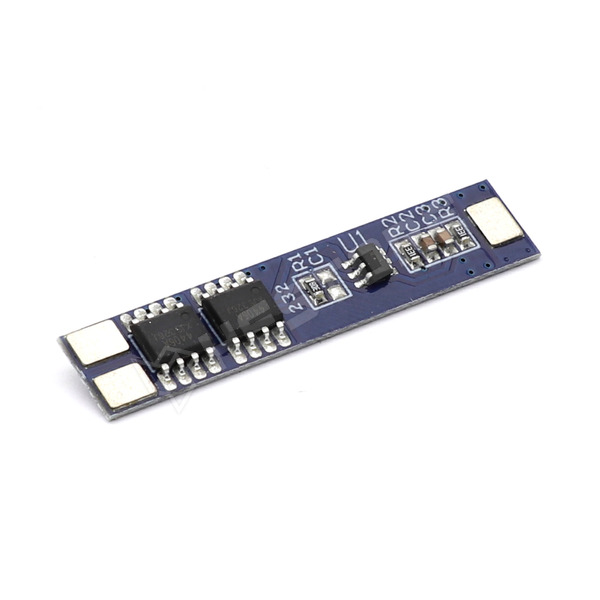

BMS module, 2S, 7.4V, 5A

Tips!
BMS modules do not replace charging circuits! The charging current is not regulated, always use a charge controller for charging!

One of the main disadvantages of lithium batteries is that they are very sensitive to the parameters of charging and discharging, especially overcharging and deep discharging.
Therefore, if we want to build a long-lasting, high-capacity energy storage, additional electronics may be necessary.
Collectively, these electronic devices are called Battery Management System or BMS.

Operating temperature	-40...50°C
Protection	Over current, Over-discharge, Overcharging, Short circuit
Operating current	5A
Dimensions	38 x 8 x 2.5mm
Max. forward impulse current	7A
Supply current	5...9.0μA
Type of surge arrester	FM7021CB
Cells quantity	2
Type of rechargeable battery	Li-Ion/Polymer
Overcharge threshold	4.28V ±0.05V
Over-discharge voltage threshold	2.9 ±0.08V
Cell balancing	none
Charging voltage	8.4V
Battery contacts	nickel plated, suitable for spot welding
