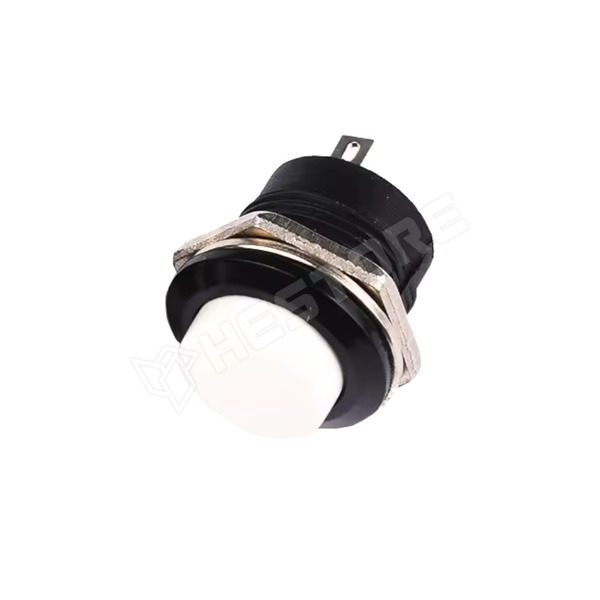

R13-507-WH

Push button, push-button, OFF-(ON), SPST-NO, for panel mounting, Ø16mm, 3A / 250V AC

RoHS	yes
Manufacturer	SCI
Type	push button
Mounting	for panel mounting
Operating temperature	-25...70°C
Leads	for soldering
Type of switch	push-button
Stable positions number	1-position
Switching method	OFF-(ON)
Body material	Plastic, plastic
Contacts configuration	SPST-NO
Mounting hole diameter	Ø16mm
AC contacts rating	3 A / 250 VAC
Max. contact resistance:	50mΩ
Electrical life	6000cycles
Actuator colour	white
Manufacturer series	R13-507
Panel thickness	max 6mm
Button shape	round, prominent
AC contacts rating @R	3A / 250V AC
Összes pozíciók száma	2
Light	none
Korpusz anyaga	plastic

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.478.74

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	263 Ft
5+	164 Ft
10+	141 Ft
20+	128 Ft
50+	119 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
10-15 workdays	> 2000
