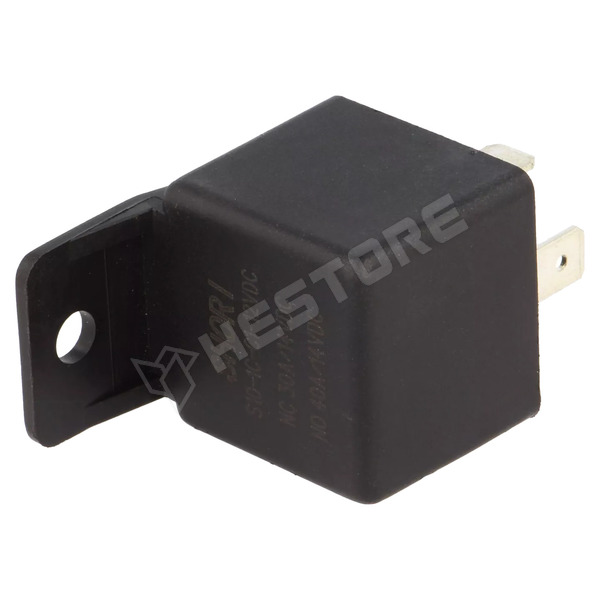

S10-1C-C1-12VDC

Relay, SPDT, 12V DC, 40A / 12V DC

Manufacturer partno	S10-1C-C1-12VDC
Manufacturer	SHORI ELECTRIC
Mounting	for panel mounting, socket
Operating temperature	-30...80°C
Body dimensions	28.6x28.6x25.3mm
Body dimensions	28.6x28.6x25.3mm
Related items	CS1-CW, RS-D03
Leads	6,3x0,8mm connectors
Mechanical durability	10000000 cycles
Contact material	silver alloy
Contacts configuration	SPDT
Electrical life	100000 cycles
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	40A
Relay variant	automotive
Coil resistance	80Ω
Coil voltage min.	9V DC
Coil voltage max.	18V DC
Operate time	10ms
Release time	10ms
Coil power consumption	1.8W
Relay series	S10
Contact resistance	100mΩ
Coil current	150mA
DC contacts rating @R	40A / 12V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.478.46

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	704 Ft
5+	516 Ft
10+	487 Ft
20+	468 Ft
50+	450 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 2500
