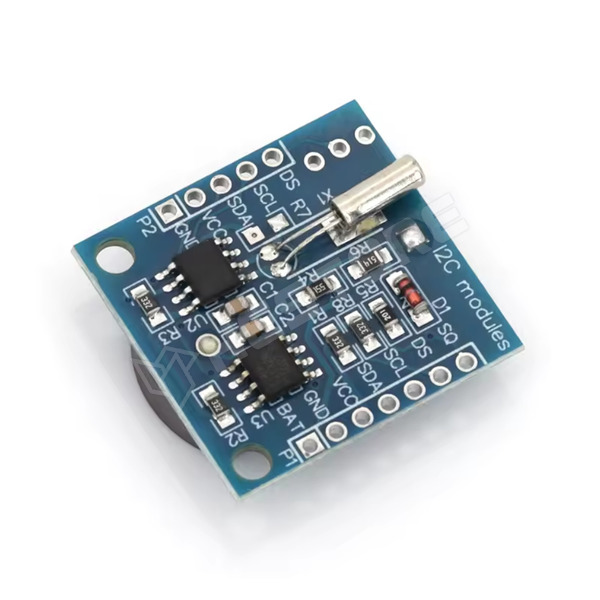

DS1307-M
DS1307 RTC module with I2C interface, AT24C32 eeprom, rechargable LIR2032 battery socket
Tips!
Do not use non-rechargeable CR2032 batteries! The module contains a charging circuit!
Power supply: 5V DCDo not use non-rechargeable CR2032 batteries! The module contains a charging circuit!
Interface: I2C
RTC IC: DS1307
EEPROM: 24C32 32k I2C
Dimensions: 27.5 x 28.4 x 8.4mm
Battery socket: LIR2032 rechargeable lithium battery
with charging circuit
The module is designed to use a 3.6V rechargeable LIR2032 lithium battery!
Before using a non-rechargeable CR2032 battery, remove the R5(200Ω), D1(1N4148), R4(1.5MΩ), R6(510kΩ) components. Replace R6(510kΩ) with a 0Ω resistor or jumper.
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.477.99
Quantity (pcs):
Unit price excl. VAT
| 1+ | 403 Ft |
|---|---|
| 5+ | 252 Ft |
| 10+ | 227 Ft |
| 20+ | 213 Ft |
| 50+ | 202 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 50 |
| 10-15 workdays | > 2000 |
