TM7705-M

Name: TM7705-M
Brand: HESTORE
SKU: 100.477.96
Availability: InStock

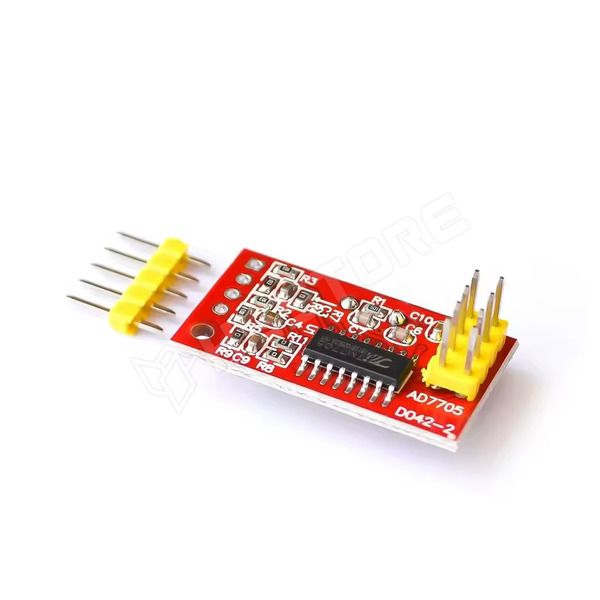

TM7705 (AD7705) dual-channel 16-bit ADC module

Supply voltage: 3.3...5V DC
Interface: SPI
ADC IC: TM7705 (full compatibility with AD7705)
Reference IC: LM285-2.5
Input with resistor divider and R-C filter (0805)
Programmable gain: 1...128X
Number of channels: 2
Resolution: 16bit

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.477.96

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	766 Ft
5+	575 Ft
10+	545 Ft
20+	525 Ft
50+	505 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
10-15 workdays	> 2000
