PTA6043-2015CPB102

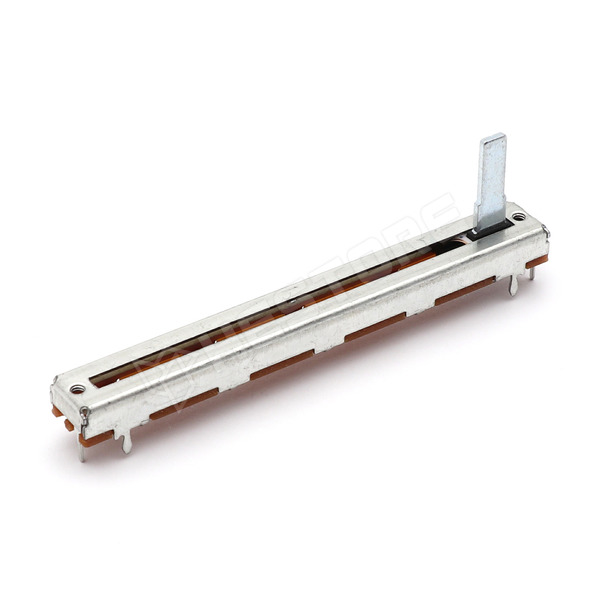

Slide potentiometer, linear, mono, 1kΩ

Manufacturer partno	PTA6043-2015CPB102
RoHS	yes
Manufacturer	BOURNS
Power	250mW
Resistance	1kΩ
Characteristics	linear, mono
Mounting	THT
Tolerance	±20%
Body dimensions	75 x 9.4 x 6.5mm
Type of potentiometer	slide
Track material	carbon
Potentiometer features	mono
Body material	metal
Shaft dimensions	15 x 5 x 1.2mm
Track length	60mm
Korpusz anyaga	metal

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.477.95

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 017 Ft
5+	816 Ft
10+	782 Ft
20+	758 Ft
50+	732 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 1000
