Main category » Optoelectronics » LEDs » High brightness LEDs »

OSW44K5A32A-1-TU

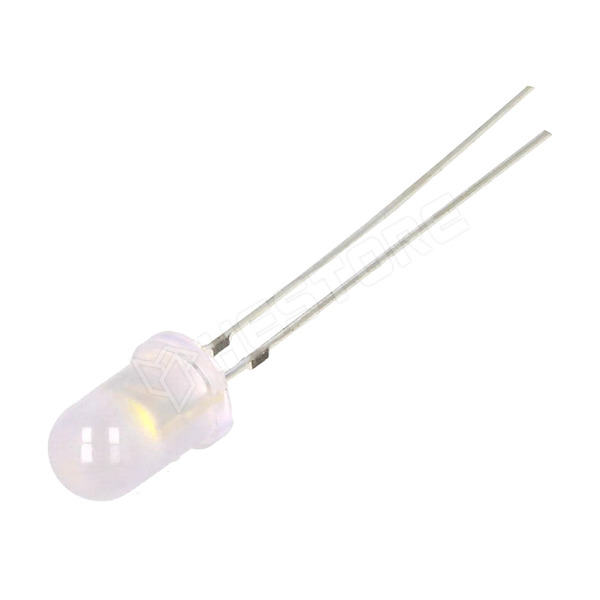

LED, 5mm, diffuse, cold white, 6500K, 10000...12000mcd, 30°, 2.7...3.4V DC

Manufacturer partno	OSW44K5A32A-1-TU
RoHS	yes
Manufacturer	OPTOSUPPLY
Number of terminals	2
Type of diode	LED
Mounting	THT
Operating voltage	2.7...3.4V DC
Terminal pitch	2.54mm
LED diameter	5mm
LED colour	white cold
Luminosity	10000...12000mcd
Viewing angle	30°
Front	convex
LED lens	diffused, white
LED current	20mA
Chromatic coordinates	x: 0.31; y: 0.33
Colour temperature	6500K

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.477.73

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	128 Ft
10+	79,99 Ft
50+	62,69 Ft
100+	59,59 Ft
200+	57,54 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
