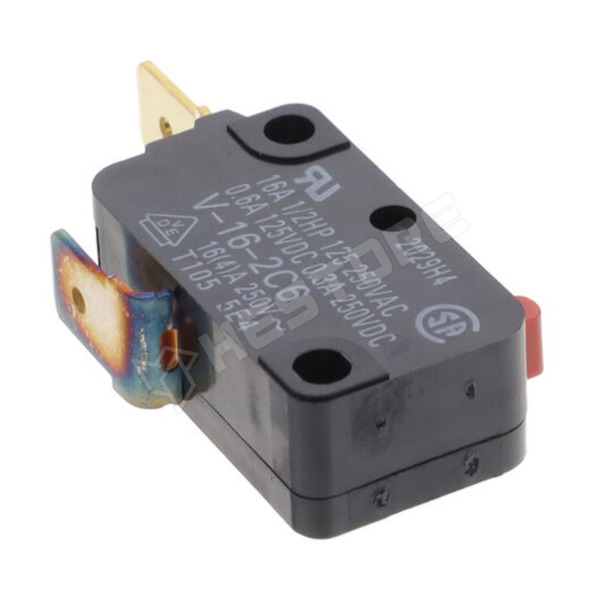

V-16-2C6

Microswitch, SNAP ACTION, SPST-NC, 250V AC / 16A, 125V DC / 0.6A

Manufacturer partno	V-16-2C6(R)
RoHS	yes
Manufacturer	OMRON OCB
Series	V
Operating temperature	-25...105°C
Body dimensions	27.8x15.9x10.3mm
Leads	6,35x0,8mm connectors
Min. insulation resistance	0.1GΩ
IP rating	IP40
Mechanical durability	50000000 cycles
Type of switch	microswitch SNAP ACTION
Stable positions number	1
Number of positions	2
Switching method	ON-(OFF)
Contacts configuration	SPST-NC
Switches features	without lever
Operating Force	3.92N
Max. contact resistance:	15mΩ
Electrical life	100000 cycles
DC contacts rating @R	0.6A / 125V DC
AC contacts rating @R	16A / 250V AC
