Main category » Switches, Relays » Push buttons, push switches »

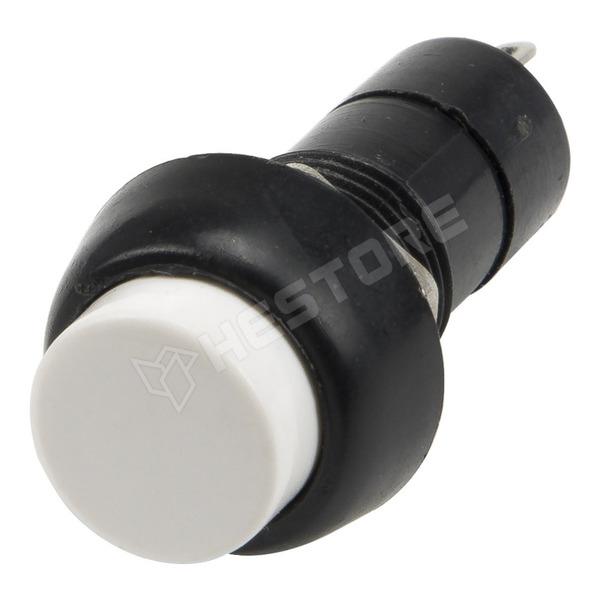

PBS-11B-WH

Push button, push-button, OFF-(ON), SPST-NO, for panel mounting, Ø12mm, 1A / 250V AC

Type	push button
Mounting	for panel mounting
Operating temperature	-25...85°C
Leads	for soldering
Type of switch	push-button
Stable positions number	1
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Mounting hole diameter	Ø12mm
Actuator colour	white
Button marking	blank
Button shape	round
AC contacts rating @R	1A / 250V AC
Összes pozíciók száma	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.474.55

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	241 Ft
5+	151 Ft
10+	128 Ft
20+	115 Ft
50+	106 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 75
3 workdays	> 500
10-15 workdays	> 2000
