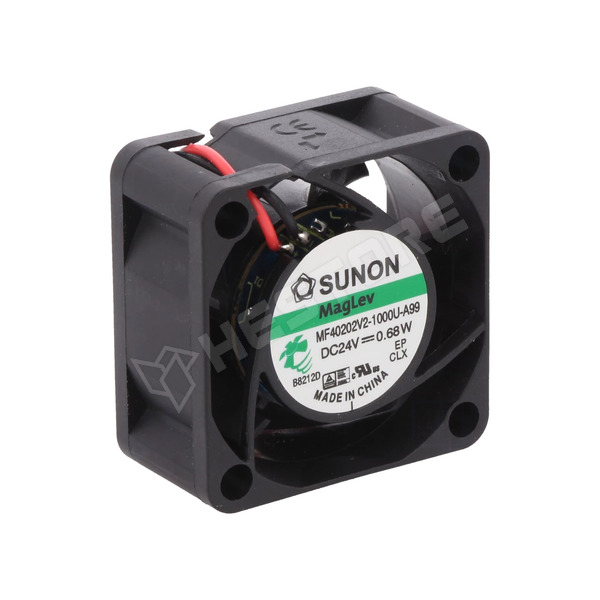

MF40202V2-1000U-A99

Fan, DC, 24V DC, 40x40x20mm, Vapo, 13.01m³/h, shaft

MF40202V2-1000U-A99 / Fan, DC, 24V DC, 40x40x20mm, Vapo, 13.01m<sup>3</sup>/h, shaft (MF40202V2-1000U-A99 / SUNON)

Manufacturer partno	MF40202V2-1000U-A99
RoHS	yes
Manufacturer	SUNON
Operating voltage	8...27.6V DC
Operating temperature	-10...70°C
Supply voltage	24V DC
Enclosure material	thermoplastic
Current rating	25mA
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	26AWG
Cable length	0.305m
Type of fan	DC
Fan dimensions	40x40x20mm
Power consumption	0.6W
Fan efficiency	13.01m³/h
Noise level	21dBA
Rotational rate/speed	6000rpm
Impeller material	thermoplastic
Static pressure	4.21mm H₂O
Fan motor	brushless DC
Additional functions	Autorestart
Cable length	0.305m
Kind of fan	shaft
Kind of Bearing	Vapo
Vezeték mérete	26AWG

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.472.75

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 847 Ft
5+	1 611 Ft
10+	1 564 Ft
20+	1 526 Ft
50+	1 480 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 7500
