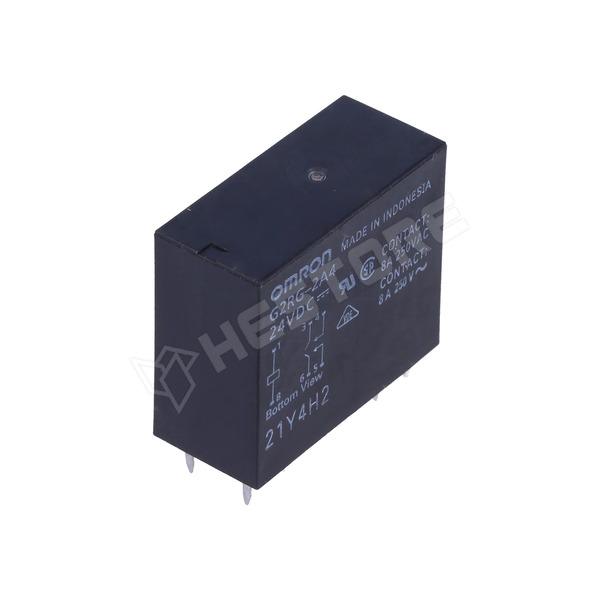

G2RG-2A4 24VDC

Relay, DPST-NO, 24V DC, 8A / 250V AC, 8A / 24V DC

Manufacturer partno	G2RG-2A4 24VDC
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...70°C
Body dimensions	29x13.5x25.5mm
Leads	for PCB
Contacts configuration	DPST-NO
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	8A
Switched voltage	max. 125V DC, max. 380V AC
Relay variant	miniature
Coil resistance	720Ω
Operate time	15ms
Release time	5ms
Coil power consumption	0,8W
Relay series	G2RG
Contact resistance	100mΩ
Coil current	33.3mA
Enclosure description	hermetic seal
DC contacts rating @R	8A / 24V DC
AC contacts rating @R	8A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.471.79

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 179 Ft
5+	971 Ft
10+	935 Ft
20+	908 Ft
50+	878 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 25
