1303450000

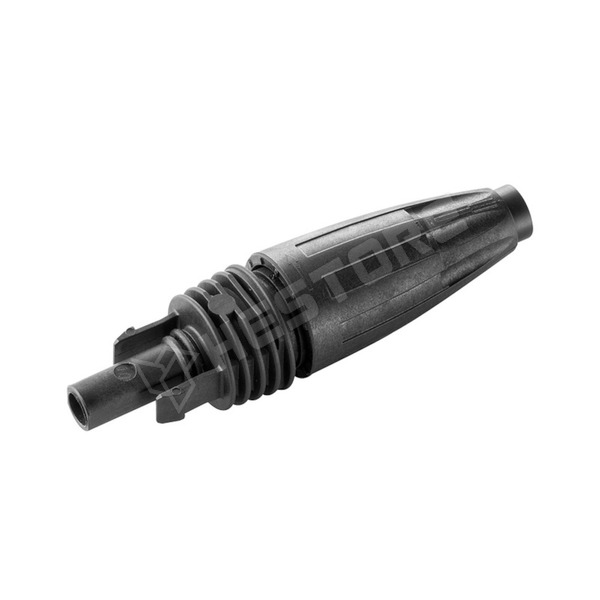

Solar quick connector, MC4, push-in, female, 4...6mm2, with contacts

Manufacturer partno	PV-STICK+ VPE10
RoHS	yes
Manufacturer	WEIDMÜLLER
Connector	plug
Operating temperature	-40...85°C
Connector variant	solar, with contacts
Kind of connector	socket, female
Electrical mounting	push-in, push-in
Mechanical mounting	for cable
Application	photovoltaics
Max. operating voltage	1.5kV DC
IP rating	IP65
Maximum current	30A
Wire cross section	4...6mm²
Cable external diameter	5.5...7.5mm
Type of connector	solar
Jelölés	+

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.470.10

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	$ 4.813
5+	$ 4.144
10+	$ 4.013
20+	$ 3.914
50+	$ 3.792

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 3000
