1530690000

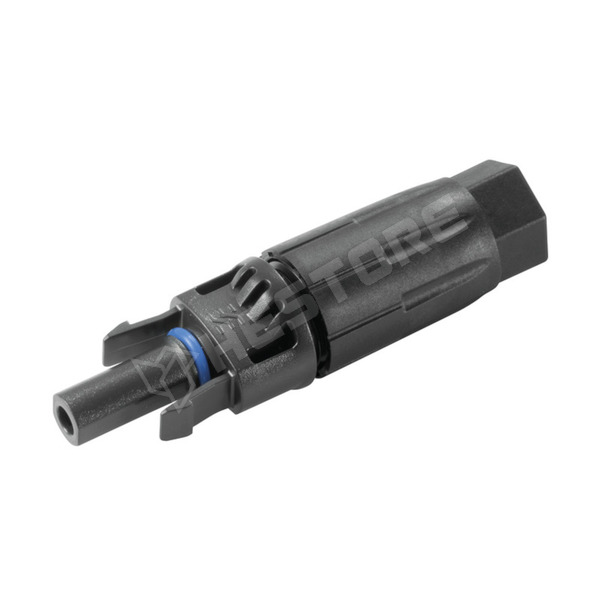

Crimpable solar connector, MC4, female, straight, 4...6mm2, without contact

Manufacturer partno	BUGH WM4 C BT
RoHS	yes
Manufacturer	WEIDMÜLLER
Connector	plug
Operating temperature	-40...85°C
Connector variant	w/o contacts, solar
Electrical mounting	crimped
Mechanical mounting	for cable
Application	photovoltaics, for photovoltaic modules
Spatial orientation	straight
Rated voltage	1.5kV
Current rating	35A
IP rating	IP67
Wire cross section	4...6mm2
Cable external diameter	5.5...7mm
Kind of connector	female

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.470.07

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	638 Ft
5+	459 Ft
10+	431 Ft
20+	414 Ft
50+	397 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 500
