BW16-IPEX-BASE-2MB

Name: BW16-IPEX-BASE-2MB
Brand: HESTORE
SKU: 100.469.73
Availability: InStock

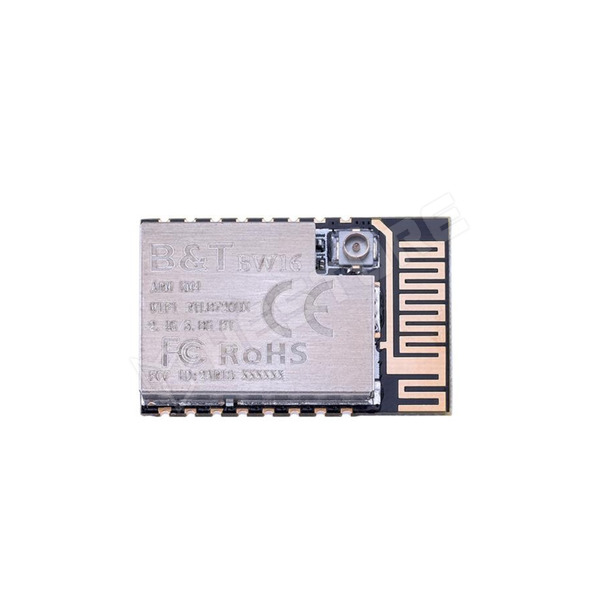

Transceiver module based on RTL8720DN, WiFi 802.11a/b/g/n, Bluetooth v5.0, 2.4GHz, 5GHz, PCB antenna, I-PEX

Model: BW16
Package: SMD-16
Size: 24 x 16 x 3mm
Antenna: PCB, IPEX
Frequency range: 2400...2483.5MHz or 5180...5825MHz
Bluetooth: BT 5.0
Bluetooth frequency range: 2.402...2.480GHz
Operating temperature: -20...70°C
Power supply: 3.0...3.6V
Power consumption: >450mA
Interface: UART, GPIO, ADC, PWM, IIC, SPI, SWD
Flash: 2MB

Manufacturer partno	BW16 WITH IPEX BASE-2MB
RoHS	yes

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.469.73
