YT06-OP-600B

Name: YT06-OP-600B
Brand: HESTORE
SKU: 100.468.45
Availability: InStock

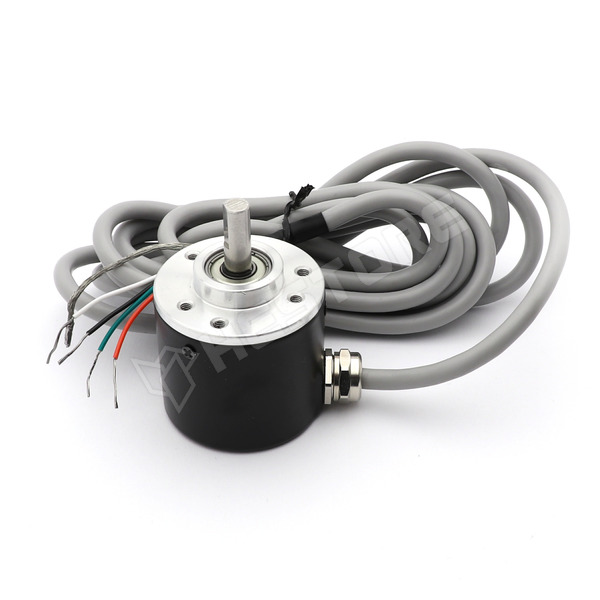

Incremental optical rotary encoder, 600 pulse, AB, 10...24V DC

Operating voltage: 10...24V DC
Maximum mechanical speed: 5000 rpm
Electrical response frequency: 20K/second
Integrated speed: 2000 rpm
Encoder body size: Ø38mm ±1mm
Shaft: Ø6mm
Axis platform: Ø20x5mm
Mounting holes: M3 screws
Wiring:
The White; B: green; 10...24V: red; GND: black
or
The green; B: white; 10...24V: red; GND: black
