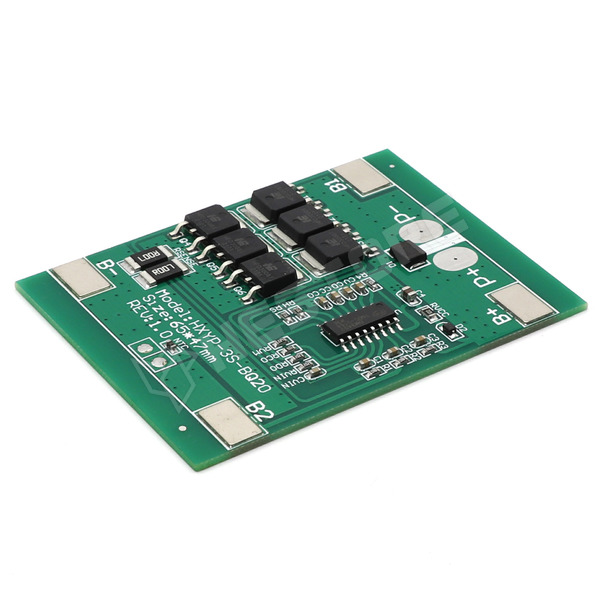

HXYP-3S-BQ20

Name: HXYP-3S-BQ20
Brand: HESTORE
SKU: 100.468.25
Availability: InStock

BMS module, 3S, 12.6V, 18A

One of the main disadvantages of lithium batteries is that they are very sensitive to the parameters of charging and discharging, especially overcharging and deep discharging.
Therefore, if we want to build a long-lasting, high-capacity energy storage, additional electronics may be necessary.
Collectively, these electronic devices are called Battery Management System or BMS.

Attention! BMS modules do not replace charging circuits! The charging current is not regulated!

Operating temperature	-40...50°C
Protection	overheating, Over current, Over-discharge, Overcharging, Short circuit
Operating current	18A
Dimensions	65 x 47.5 x 3.7mm
Max. forward impulse current	28A
Supply current	25...40μA with NTC
Type of surge arrester	BM3452TNDC-S16A
Cells quantity	3
Type of rechargeable battery	Li-Ion/Polymer
Properties	10k NTC on board
Overcharge threshold	4.25V ±0.025V
Over-discharge voltage threshold	2.8V ±0.08V
Cell balancing	none
Charging voltage	12.6V
Battery contacts	nickel plated, suitable for spot welding

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.468.25

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 652 Ft
5+	1 459 Ft
10+	1 415 Ft
20+	1 381 Ft
50+	1 339 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
10-15 workdays	> 2000
