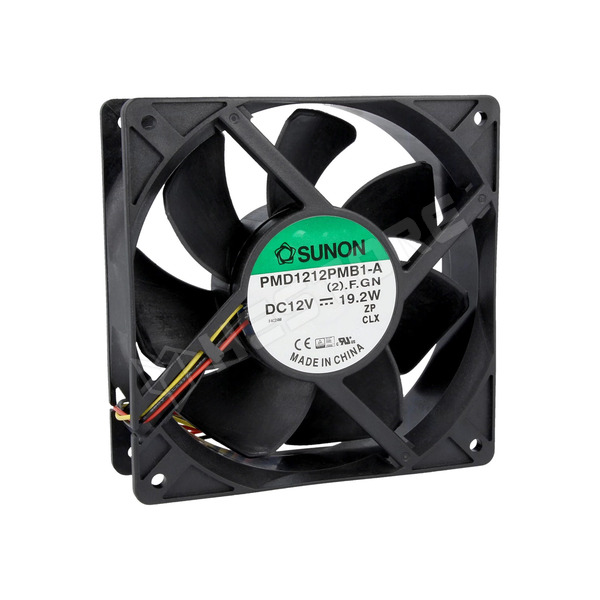

PMD1212PMB1-A(2).F.GN

Fan, DC, 12V DC, 120x120x38mm, ball bearing, 323m³/h, shaft, axial

PMD1212PMB1-A(2).F.GN / Fan, DC, 12V DC, 120x120x38mm, ball bearing, 323m<sup>3</sup>/h, shaft, axial (PMD1212PMB1-A(2).F.GN / SUNON)

Manufacturer partno	PMD1212PMB1-A(2).F.GN
RoHS	yes
Manufacturer	SUNON
Operating voltage	6...13.8V
Operating temperature	-10...70°C
Supply voltage	12V DC
Enclosure material	thermoplastic
Current rating	1.6A, 1,6A
Leads	3 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	24AWG
Cable length	0.33m
Type of fan	DC
Fan dimensions	120x120x38mm
Power consumption	19.2W
Fan efficiency	323m³/h
Noise level	54dBA
Rotational rate/speed	4200 (±10%)rpm
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	16.5mm H₂O
Fan motor	brushless DC
Additional functions	Autorestart
Signal output	F type
Cable length	0.33m
Kind of fan	axial, shaft
Kind of Bearing	ball bearing
Vezeték mérete	24AWG

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.467.07

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	11 015 Ft
5+	10 405 Ft
10+	10 206 Ft
20+	10 019 Ft
50+	9 747 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 100
