Main category » Capacitors » Electrolytic capacitors »

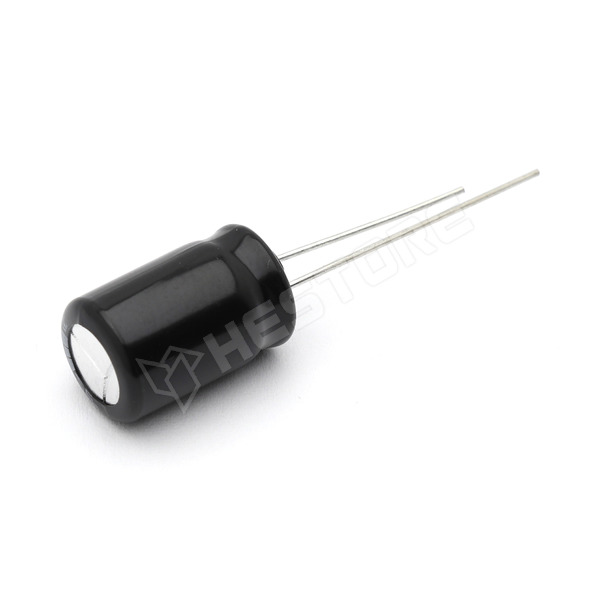

EEU-FR1A102

Capacitor, electrolytic, 1mF, 10V DC, Ø10x16mm, -40...105°C

Manufacturer partno	EEU-FR1A102
RoHS	yes
Manufacturer	PANASONIC
Impedance	28mΩ
Mounting	THT
Tolerance	±20%
Type of capacitor	electrolytic
Capacitance	1mF
Operating voltage	10V DC
Operating temperature	-40...105°C
Body dimensions	Ø10x16mm
Service life	8000h
Capacitors series	FR
Conform to the norm	AEC-Q200
Kind of capacitor	low ESR

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.465.80

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	$ 1.775
5+	$ 1.231
10+	$ 1.150
20+	$ 1.100
50+	$ 1.053

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 10000
