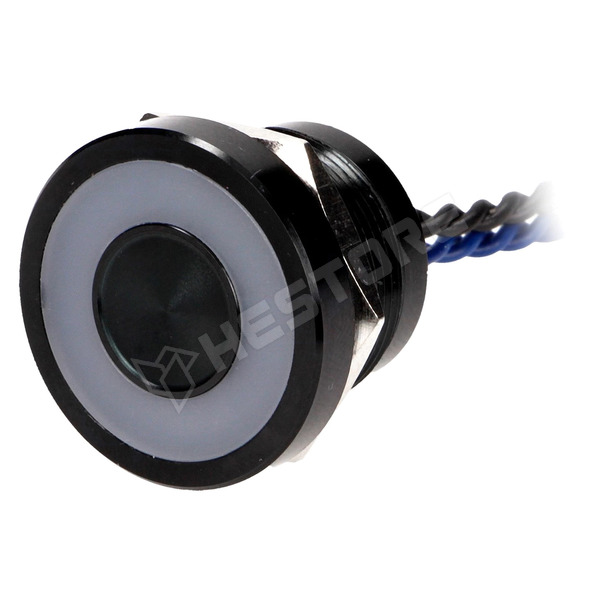

PS225P10YBK1B12VL

Piezo, OFF-(ON), SPST-NO, 0.2A / 24V AC, 0.2A / 24V DC

Manufacturer partno	PS225P10YBK1B12VL
RoHS	yes
Manufacturer	ONPOW
Operating temperature	-40...75°C
Body colour	black
Mounting hole diameter	Ø22mm
Leads	30mm wire
Illumination	LED, large, ring
IP rating	IP68
Type of switch	piezo
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Body material	aluminium
Contacts configuration	SPST-NO
Operating Force	6N
Body colour	black
Electrical life	50000000 cycles
Button shape	flat, smooth
Contact current max.	0.2A
Switched voltage	max. 24V DC, max. 24V AC
Backlight colour	blue
DC contacts rating @R	0.2A / 24V DC
AC contacts rating @R	0.2A / 24V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.465.27

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	7 447 Ft
5+	6 982 Ft
10+	6 843 Ft
20+	6 713 Ft
50+	6 529 Ft
