MT3608-2A-USBMICRO

Name: MT3608-2A-USBMICRO
Brand: HESTORE
SKU: 100.463.29
Availability: InStock

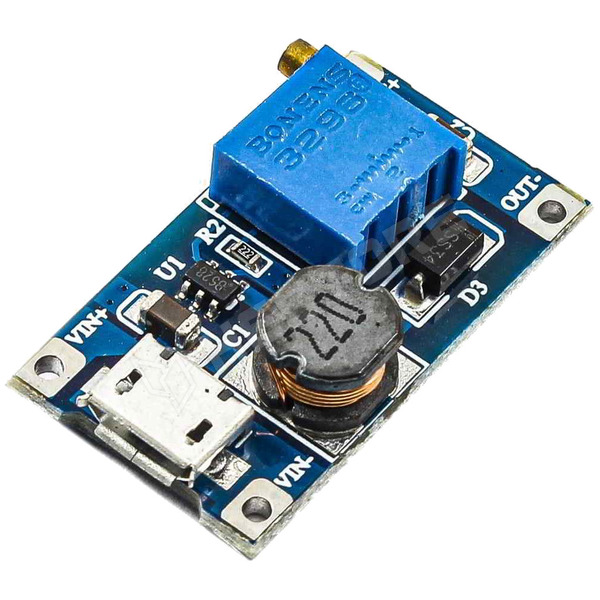

DC-DC step-up module, 2A, 3...12V DC - 4...28V DC, micro USB

Before the first installation, solder a 220Ω, 3W resistor to the output of the module, connect 3V DC voltage to its input, set the desired output voltage, solder off the resistor, and only then connect your device to the module.
Do not set the output voltage of the module below its input voltage or the module will fail.

Multi-turn potentiometer for precise adjustment
Maximum output peak current: 2A
Input voltage: 3...12V DC
Maximum output voltage: 4...28V DC
Efficiency: min. 93%

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.463.29
