RA-02-M

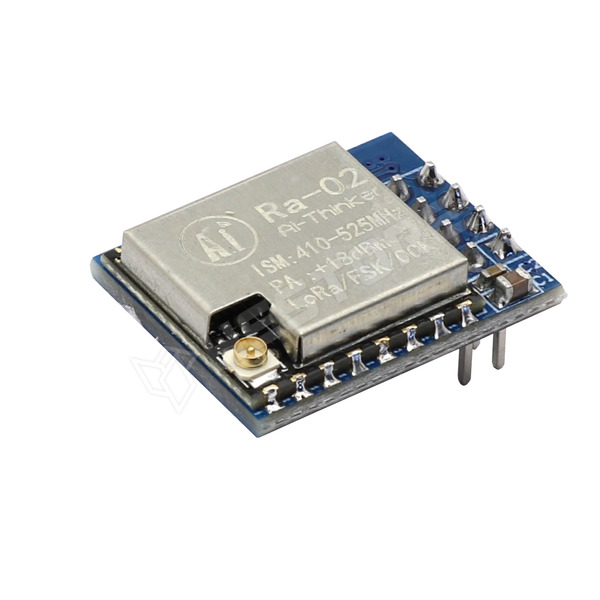

SX1278 LoRa module, 433MHz, IPEX antenna connector
Ultra-long communication distance 15KM
Constant RF power output with +20dBm-100mW voltage change
High sensitivity: as low as -148dBm
Half-duplex SPI communication
Programmable bit rate up to 300kbps
Support FSK, GFSK, MSK, GMSK, LoRa and OOK modulation
127dB RSSI dynamic range
Automatic RF signal detection, CAD mode and ultra high speed AFC
Packet engine with CRC, up to 256 bytes
Small size double-column stamp hole patch package
With shield
Constant RF power output with +20dBm-100mW voltage change
High sensitivity: as low as -148dBm
Half-duplex SPI communication
Programmable bit rate up to 300kbps
Support FSK, GFSK, MSK, GMSK, LoRa and OOK modulation
127dB RSSI dynamic range
Automatic RF signal detection, CAD mode and ultra high speed AFC
Packet engine with CRC, up to 256 bytes
Small size double-column stamp hole patch package
With shield
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Related, recommended articles
Part.No: 100.463.19
Quantity (pcs):
Unit price excl. VAT
| 1+ | 2 253 Ft |
|---|---|
| 5+ | 2 001 Ft |
| 10+ | 1 947 Ft |
| 20+ | 1 903 Ft |
| 50+ | 1 846 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 75 |
| 10-15 workdays | > 10000 |
