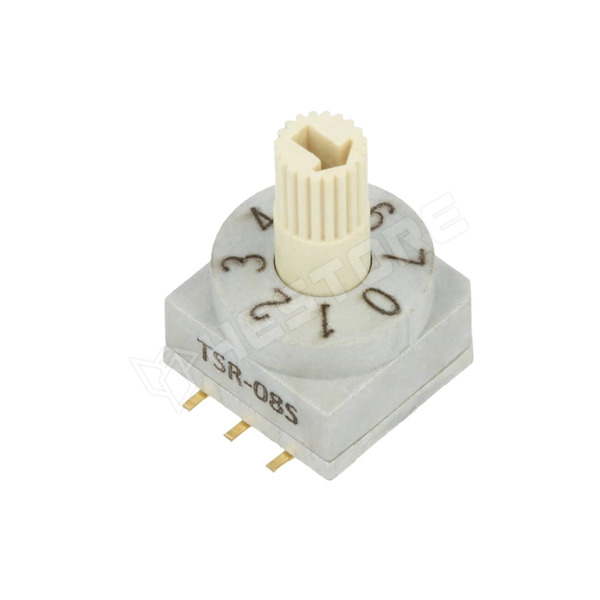

TSR-08S-TR

Code switch, positions: 8, SMD, R sensor max: 80mΩ, R to min: 100MΩ

Manufacturer partno	TSR-08S-TR
RoHS	yes
Manufacturer	SUNGMUN ELECTRONICS CO., LTD.
Series	T/S/Q
Mounting	SMT
Body dimensions	10x10x6.5mm
Leads	for PCB
Min. insulation resistance	100MΩ
Type of switch	encoding switch
Stable positions number	8-pozíciós
Number of positions	8
Switching torque	7Ncm
Max. contact resistance:	80mΩ
Manufacturer series	T/S/Q
DC contacts rating @R	0.2A / 42V DC
Kapcsoló fajtája	DEC/BCD

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.462.90

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	948 Ft
5+	750 Ft
10+	717 Ft
20+	694 Ft
50+	670 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 2
