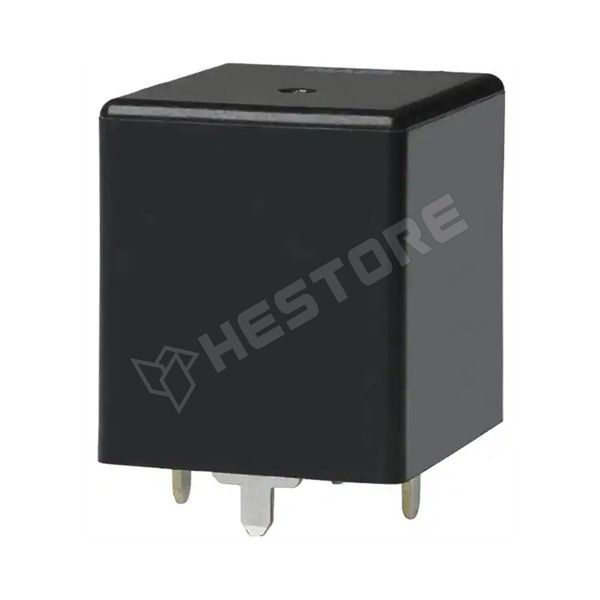

CB1A-T-P-12V

Relay, 12V DC, SPST-NO

Manufacturer partno	CB1a-T-P-12V
RoHS	yes
Manufacturer	PANASONIC
Operating temperature	-40...125°C
Body dimensions	22 x 26 x 25mm
Turn-on time	15ms
Turn-off time	15ms
Leads	for PCB
DC contacts rating	40A / 14V DC
Contacts configuration	SPST-NO
Rated coil voltage	12V DC
Coil resistance	89.5Ω
Contact resistance	15mΩ

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.462.71

Add to favorites

Quantity (pcs):

Packing:
50 pcs / tray

Unit price excl. VAT

1+	2 613 Ft
5+	2 346 Ft
10+	2 286 Ft
20+	2 236 Ft
50+	2 171 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 350
