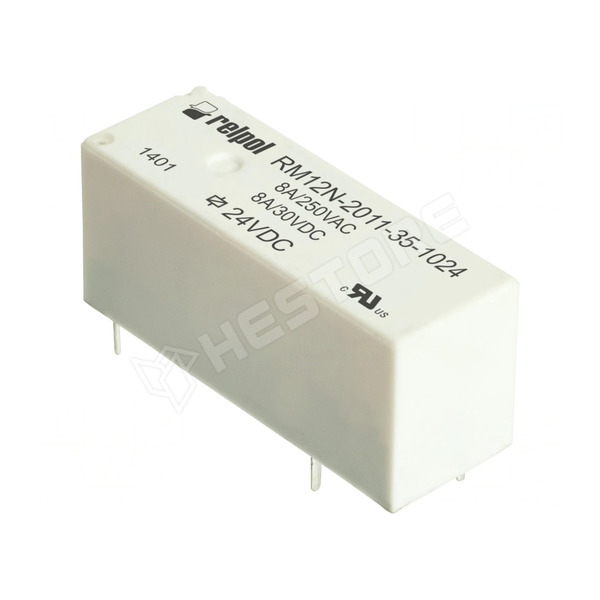

RM12N-2011-35-1024

Relay, SPDT, 24V DC, 8A / 250V AC, 8A / 28V DC

Manufacturer partno	RM12N-2011-35-1024
RoHS	yes
Manufacturer	RELPOL
Mounting	PCB
Terminal pitch	7.62mm
Operating temperature	-40...85°C
Body dimensions	28.7x10.3x12.7mm
Body dimensions	28.7x10.3x12.7mm
IP rating	IP67
Mechanical durability	100000000 cycles
Contact material	AgNi
Contacts configuration	SPDT
Electrical life	100000 cycles
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	10A
Switched voltage	max. 30V DC, max. 440V AC
Relay variant	miniature
Coil resistance	2.35kΩ
Coil voltage min.	16.8V DC
Coil voltage max.	31.2V DC
Operate time	10ms
Release time	5ms
Coil power consumption	220mW
Relay series	RM12N
Contact resistance	100mΩ
DC contacts rating @R	8A / 28V DC
AC contacts rating @R	8A / 250V AC
OEM number	2614992
