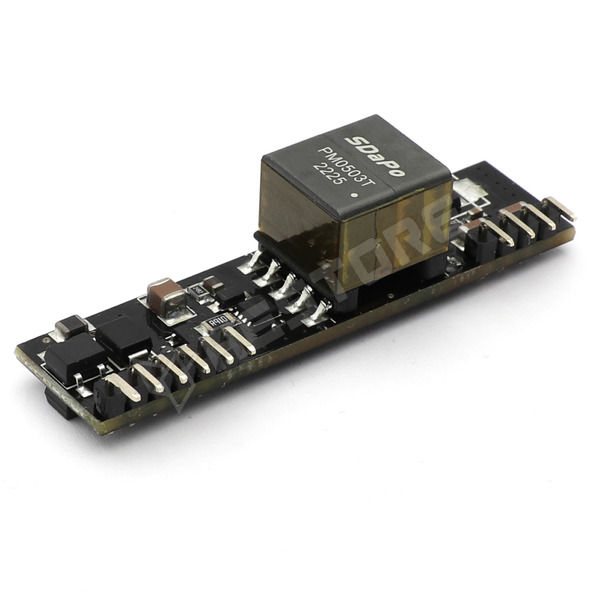

DP9700-5V

Active PoE power supply module, IEEE 802.3af, isolated, 5V DC, 2A, 10W, 37...57V DC

Manufacturer partno	DP9700-5V
RoHS	yes
Manufacturer	SDAPO
Output voltage	5V DC
Input voltage	37...57V DC
Operating temperature	-40...85°C
Output current	2.4A
Efficiency	83%
Standard	IEEE 802.3af
Dimensions	56 x 14 x 19mm
Breakdown voltage	1.5kV
Output ripple	≤200mVpp
