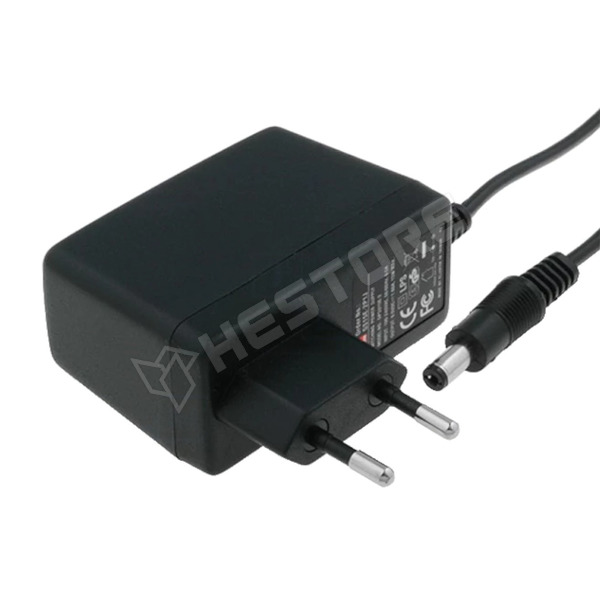

GS15E-0P1J

Power supply, switched-mode, 3.3V DC, 2.18A, 7.2W, 5.5/2.1mm

Manufacturer partno	GS15E-0P1J
RoHS	yes
Manufacturer	MEAN WELL
Power	7.2W
Output voltage	3.3V DC
Polarisation	positive inner pin
Operating temperature	0...50°C
Body dimensions	34x71x50mm
Connector variant	straight
Supply voltage	90...264V AC, 135...370V DC
Output current	2.18A
Type of power supply	switched-mode
Kind of power supply	plug, plug
Protection	short circuit protection, anti-overload, anti-overvoltage
Body dimensions	34x71x50mm
Efficiency	55%
Maximum output current	2.18A
Conform to the norm	Energy efficiency Level VI
Output connector type	5.5/2.1mm
Plug variant	EU
Length of output cable	1.2m
Operating modes	constant voltage
Kind of output connector	5,5/2,1

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.456.69

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	6 201 Ft
5+	5 787 Ft
10+	5 668 Ft
20+	5 559 Ft
50+	5 406 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 100
