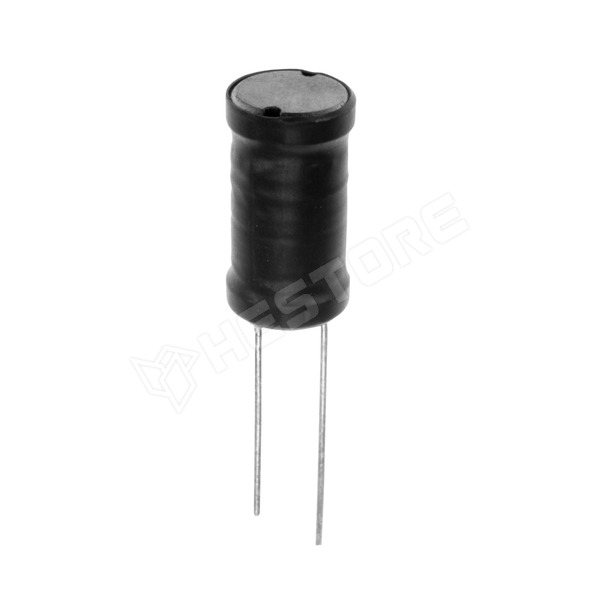

19R685C-6.8mH

Inductor, 6.8mH, 290mA, 5.7Ω, THT, vertical, Ø12x21mm

Manufacturer partno	19R685C
RoHS	yes
Manufacturer	MURATA
Series	1900
Resistance	5.7Ω
Mounting	THT
Tolerance	±10%
Operating temperature	-40...95°C
Body dimensions	Ø12x21mm
Spatial orientation	vertical, vertical
Operating current	290mA
Type of inductor	wire
Inductance	6.8mH

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.452.62

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 2.238
5+	€ 1.744
10+	€ 1.663
20+	€ 1.609
50+	€ 1.551

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 100
