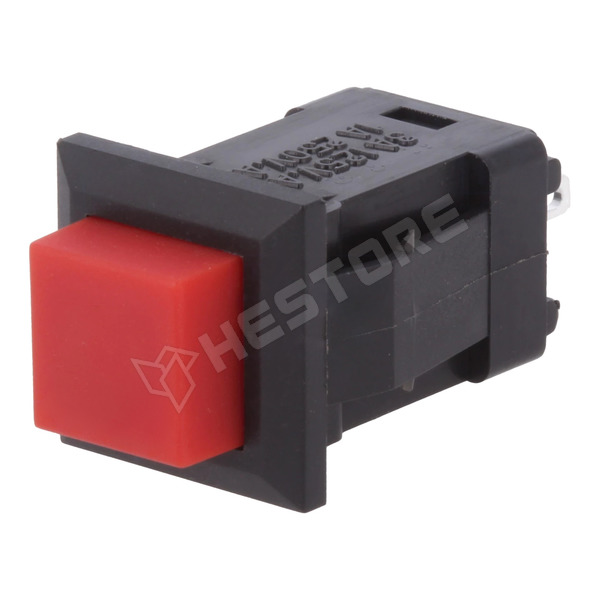

DS-435-S-R

Push switch, OFF-ON, SPST-NO, for panel mounting, 12.2 x 11.2mm, 1A / 250V AC

Manufacturer partno	DS-435-S-R
RoHS	yes
Manufacturer	MIYAMA
Series	DS-435
Mounting	for panel mounting
Operating temperature	-10...55°C
Body colour	black
Leads	for soldering
Illumination	none
Min. insulation resistance	100MΩ
Type of switch	push-button
Stable positions number	2
Number of positions	2
Switching method	OFF-ON
Contacts configuration	SPST-NO
Mounting hole diameter	12.2 x 11.2mm
Max. contact resistance:	20mΩ
Body colour	black
Actuator colour	red
Button shape	square, prominent
Panel thickness	1.5...3mm
AC test voltage	1.5kV
AC contacts rating @R	1A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.452.33

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 102 Ft
5+	897 Ft
10+	862 Ft
20+	837 Ft
50+	808 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 250
