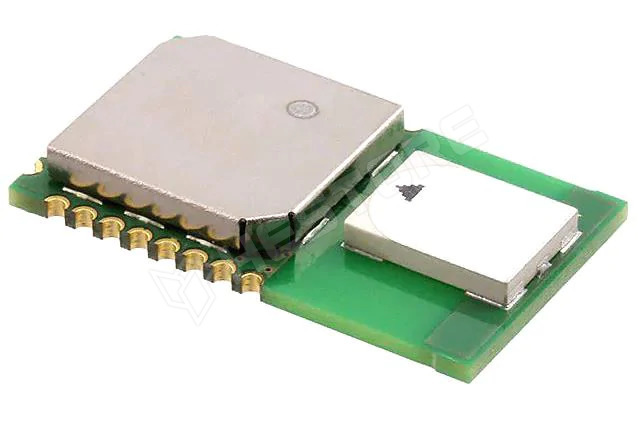

DWM1000

UWB RF module for positioning, 3.5÷6.5GHz, SPI, 2.8÷3.6VDC, SMD, Ultra-wideband

Manufacturer partno	DWM1000
RoHS	yes
Manufacturer	DECAWAVE
Frequency	3.5...6.5GHz
Mounting	SMD
Operating temperature	-40...85°C
Body dimensions	23x13x2.9mm
Supply voltage	2.8...3.6V DC
Interface	SPI
Body dimensions	23x13x2.9mm
Transmission rate	6.8Mbps
Standard	IEEE 802.15.4-2011
Type of communications module	RF
TX/RX supply current	140/160mA
Position determination accuracy	±0.1m

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.449.18

Add to favorites

Quantity (pcs):

Packing:
500 pcs / reel

Unit price excl. VAT

1+	6 246 Ft
5+	5 830 Ft
10+	5 710 Ft
20+	5 601 Ft
50+	5 446 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 10000
