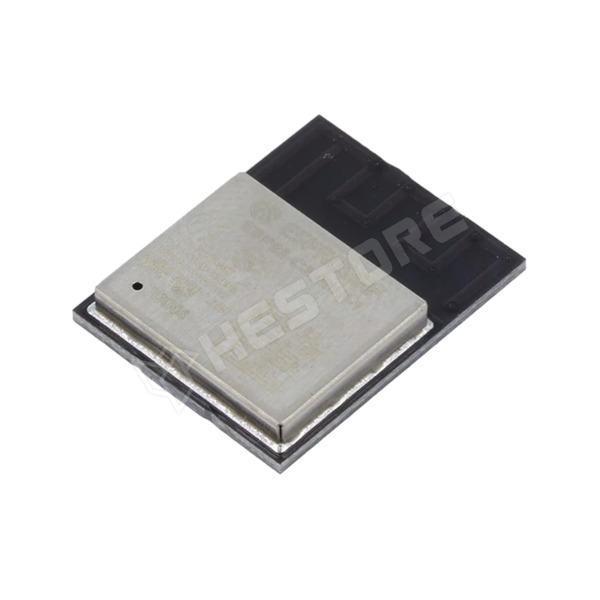

ESP32-C3-MINI-1-H4

ESP32-C3 series small size, 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5, 4MB flash

Manufacturer partno	ESP32-C3-MINI-1-H4
RoHS	yes
Manufacturer	ESPRESSIF
Mounting	SMD
Operating temperature	-40...105°C
Supply voltage	3...3.6V DC
Interface	I2C, SPI, UART, I2S, GPIO, WiFi
SRAM memory capacity	400kB
Dimensions	13.2x16.6x2.4mm
Flash memory capacity	4MB
Type of communications module	IoT
Receiver sensitivity	-97dBm
Transmitter output power	19.5dBm
Band	2.412...2.484GHz
Ciphering	AES, WPA2-PSK, WPA, WPS
Communictions protocol	Bluetooth, Bluetooth Low Energy, IEEE 802.11b/g/n/e/i
Components	ESP32-C3
Antenna fajtája	PCB
Hálozat fajtája	WiFi
Magok száma	1

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.448.49

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 477 Ft
5+	1 257 Ft
10+	1 215 Ft
20+	1 184 Ft
50+	1 146 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 1000
10-15 workdays	> 5000
