R13-541BL-01-BG-L1

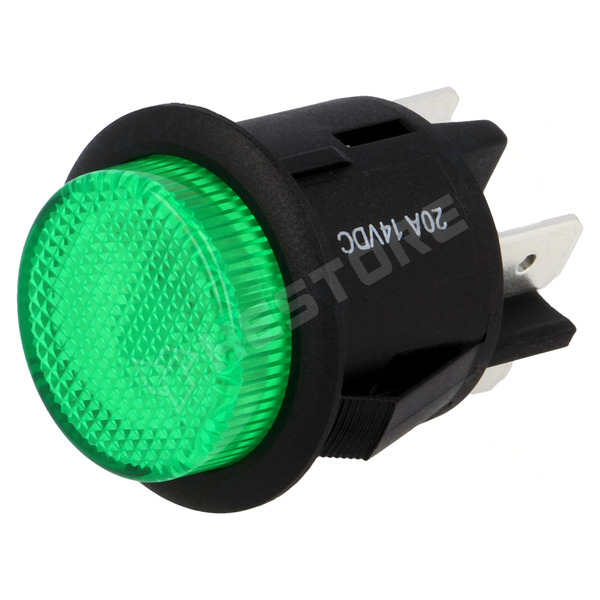

Push-button, OFF-ON, DPST-NO, for panel mounting, Ø26x27mm, 20A / 12V DC

Manufacturer partno	R13-541BL-01-BG-L1
RoHS	yes
Manufacturer	SCI
Series	R13-541
Mounting	for panel mounting
Operating temperature	-25...70°C
Body dimensions	Ø26x27mm
Mounting hole diameter	Ø25mm
Leads	6,35mm connectors
Illumination	LED
Type of switch	push-button
Stable positions number	2
Switching method	OFF-ON
Body material	polyamide
Contacts configuration	DPST-NO
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
Actuator colour	green
Button shape	round, prominent
Backlight colour	green
Panel thickness	max. 3mm
AC test voltage	1.5kV
Terminals plating	silver plated
DC contacts rating @R	20A / 12V DC
Megvilágítás feszültsége	12V DC
