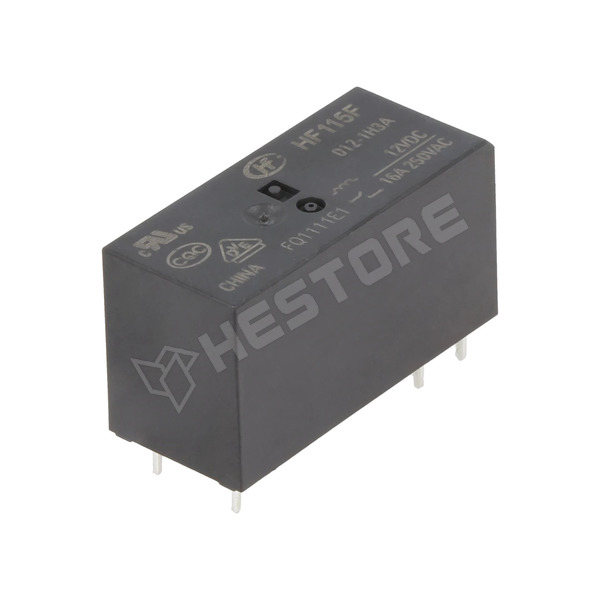

HF115F/012-1H3A

Relay, SPST-NO, 12V DC, 16A / 250V AC, 16A / 24V DC

Manufacturer partno	HF115F/012-1H3A
RoHS	yes
Manufacturer	HONGFA RELAY
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...85°C
Body dimensions	29x12.7x15.7mm
Contact material	AgSnO₂
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	16A
Switched voltage	max. 300V DC, max. 440V AC
Relay variant	miniature
Coil resistance	360Ω
Coil voltage min.	8.4V DC
Coil voltage max.	18V DC
Operate time	15ms
Release time	8ms
Coil power consumption	400mW
Relay series	HF115F
Contact resistance	100mΩ
DC contacts rating @R	16A / 24V DC
AC contacts rating @R	16A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.446.00

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	901 Ft
5+	705 Ft
10+	673 Ft
20+	651 Ft
50+	627 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 500

Any questions?

Alternatives, similar/substitute products

HF115F/012-1HS3AF
Relay, SPST-NO, 12V DC, 16A / 250V AC, 16A / 24V DC
