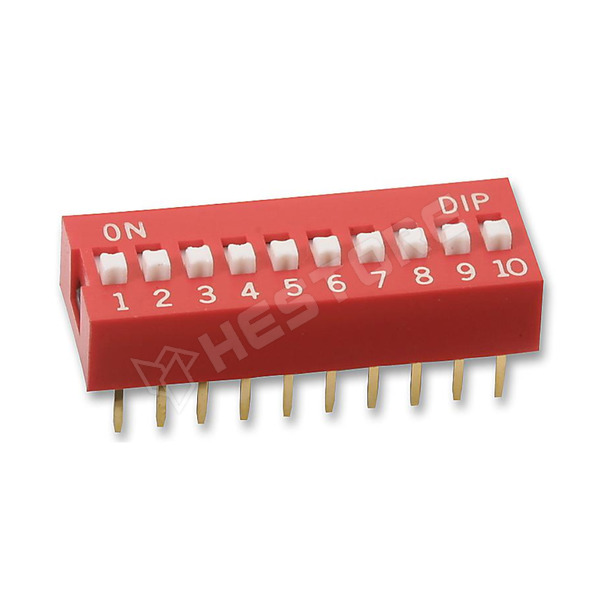

SDIP-10

DIP switch, mini, 10 sections

RoHS	yes
Manufacturer	T&T Connection System Co.,Ltd.
Case	DIL20
Mounting	THT
Terminal pitch	2.54mm
Operating temperature	-25...70°C
Row pitch	7.62mm
Type of switch	DIP-SWITCH
Stable positions number	2-position
DC contacts rating	0.025A / 24V DC
Poles number	10
Switching method	ON-OFF
Switches features	raised actuator
Overall length	26.4mm
Max. contact resistance:	100mΩ
DC contacts rating @R	0.025A / 24V DC
Összes pozíciók száma	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.442.32
