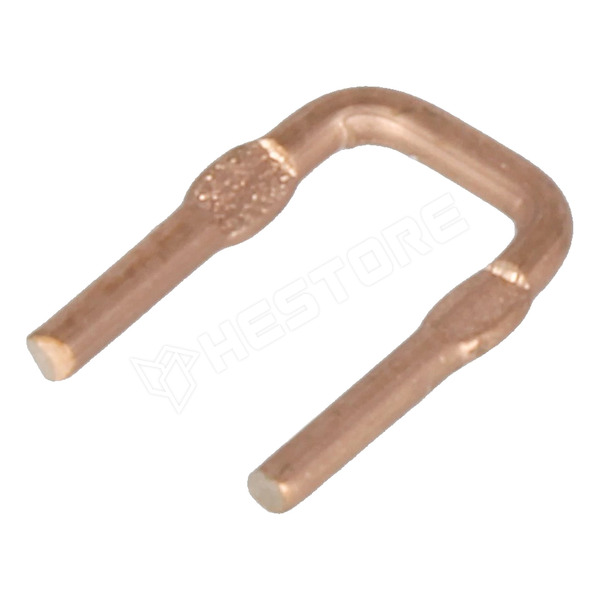

CSR-0.8-R010

Current sensing shunt resistor, 10mΩ, ±5%, sensing, precise

Manufacturer partno	CSR-0.8-R010
Manufacturer	SR PASSIVES
Diameter	0.8mm
Resistance	10mΩ
Mounting	THT
Tolerance	±5%
Operating temperature	-40...200°C
Type of resistor	wire-wound
Leads	radial
Max. operating current	4.5A
Kind of resistor	sensing, precise

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.441.33

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	131 Ft
5+	81,74 Ft
10+	60,07 Ft
20+	48,89 Ft
50+	41,57 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
