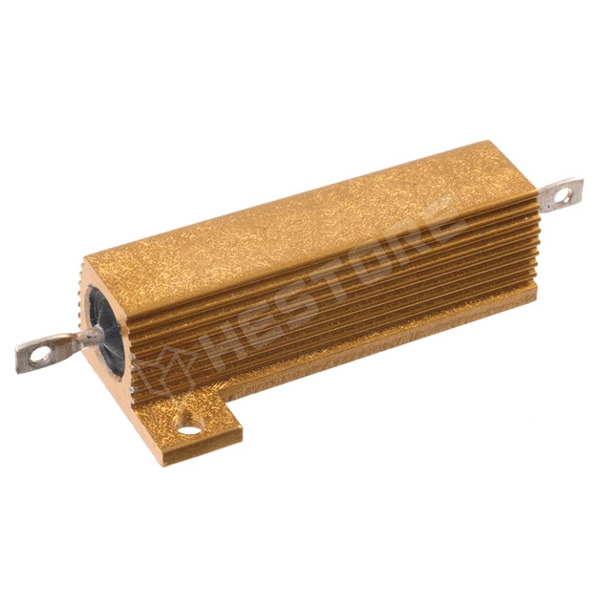

HS50-120RJ

Wirewound resistor, 120Ω, 50W, ±5%

Manufacturer partno	HS50 120R J
Manufacturer	ARCOL
Power	50W
Resistance	120Ω
Mounting	screw
Tolerance	±5%
Body dimensions	49.1x29.7x14.8mm
Type of resistor	wire-wound
Max. operating voltage	1250V
Temperature coefficient	100ppm/°C
Resistor features	needs additional heatsink
Leads	for soldering
Mounting holes pitch	39.7x21.4mm
Power without heatsink	14W
Kind of resistor	with heatsink
Insulation class	screw
Teljesítmény kiegészítő radiátor nélkül	14W
