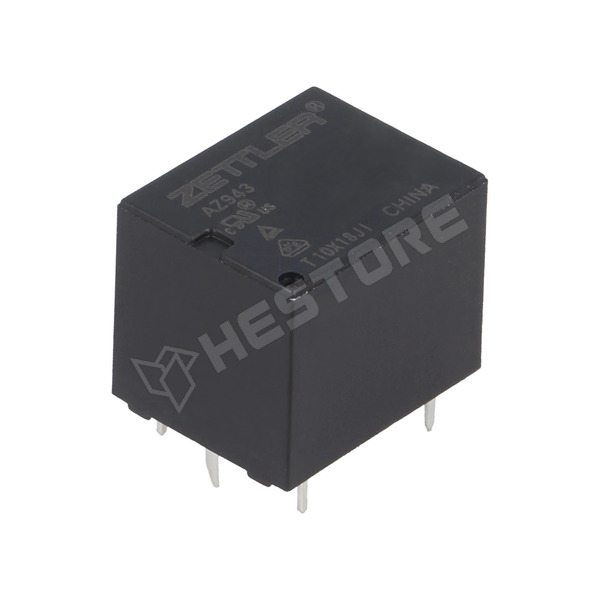

AZ943-1CH-12DE

Relay, SPDT, 12V DC, 10A / 277V AC, 7A / 30V DC

Manufacturer partno	AZ943-1CH-12DE
RoHS	yes
Manufacturer	ZETTLER
Mounting	PCB
Terminal pitch	2mm
Operating temperature	-40...90°C
Body dimensions	19.25x15.96x15.49mm
Body dimensions	19.25x15.96x15.49mm
IP rating	IP64
Contact material	AgSnO₂
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	15A
Switched voltage	max. 30V DC, max. 300V AC
Relay variant	miniature
Operate time	10ms
Release time	5ms
Coil power consumption	203mW
Relay series	AZ943
Contact resistance	100mΩ
DC contacts rating @R	7A / 30V DC
AC contacts rating @R	10A / 277V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.440.87

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 1.023
5+	€ 0.640
10+	€ 0.577
20+	€ 0.542
50+	€ 0.512

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
3 workdays	> 10000
