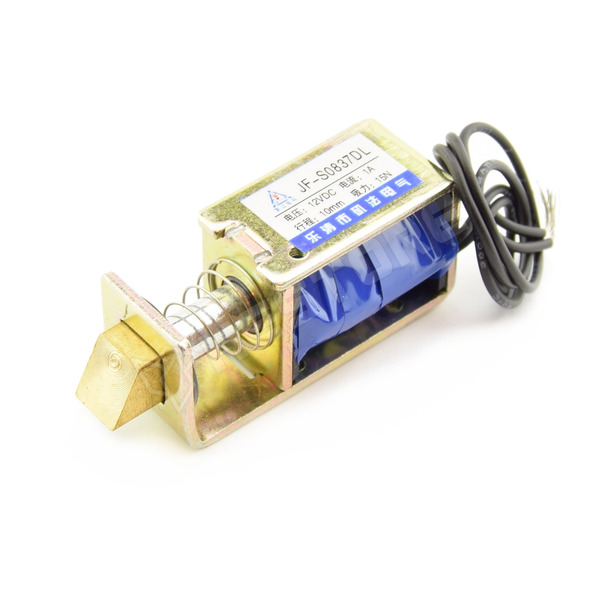

JF-S0837DL
Electromagnetic door lock (solenoid), 12V DC, 1A, 10mm travel length, 15N
This door solenoid works with an electromagnet. The spring pushes the pin outwards by default, but the pin is pulled in when the solenoid is activated.
Specifications:
Voltage: 12V DC
Current: ~1A at 12V (only for short-term use (10s))
Current (max for long-term use): 300mA (current must be regulated back yourself, this is possible with PWM for example)
Force: 15N
Stroke length: 10mm
Dimensions (frame): 51 x 20 x 26mm (width can deviate slightly due to the coil windings)
Dimensions (with door latch): 65 x 20 x 26mm
Has four mounting holes with M3 threads
Cable length: ~ 20cm
This solenoid has no fixed polarity, so the voltage can be connected in two ways resulting in the same effect.
Note: We do not recommend activating the solenoid for a long time. This solenoid is intended for short-term use.
