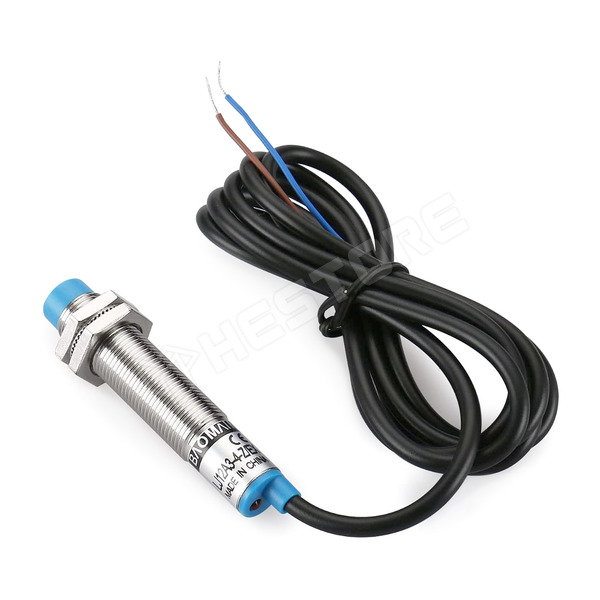

LJ12A3-4-Z/EX

Inductive proximity sensor, M12x1, 2 wire, NO

Number of terminals	2 leads
Operating voltage	6...36V DC
Operating temperature	-25...60°C
Sampling speed	500Hz
Body dimensions	M12x64mm
Maximum output current	300mA
Type of sensor	Inductive
Mounting	female, M12x1.0
Mounting hole diameter	12mm
Cable length	1m
Kind of output	NO
Detection object	steel
Indicator LED	yes
Detecting Distance	0...2mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.439.45

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 040 Ft
5+	1 797 Ft
10+	1 746 Ft
20+	1 705 Ft
50+	1 654 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
10-15 workdays	> 10000
