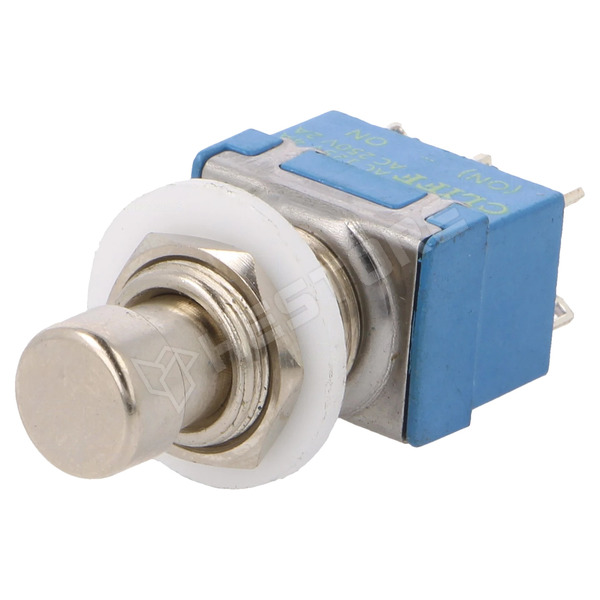

FC7105

Push button, DPDT, 1A/250V AC, ON-(ON)

Manufacturer partno	FC7105
RoHS	yes
Manufacturer	CLIFF
Operating temperature	-20...65°C
Body colour	blue
Application	foot switches
Mounting hole diameter	Ø12.2mm
Leads	for soldering
Illumination	none
Type of switch	push-button
Stable positions number	1
Number of positions	2
Switching method	(ON)-ON
Contacts configuration	DPDT
Body colour	blue
Actuator colour	silver
Button shape	cylindrical, round, prominent
AC contacts rating @R	1A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.438.95

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 4.942
5+	€ 4.338
10+	€ 4.213
20+	€ 4.114
50+	€ 3.989

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 150
