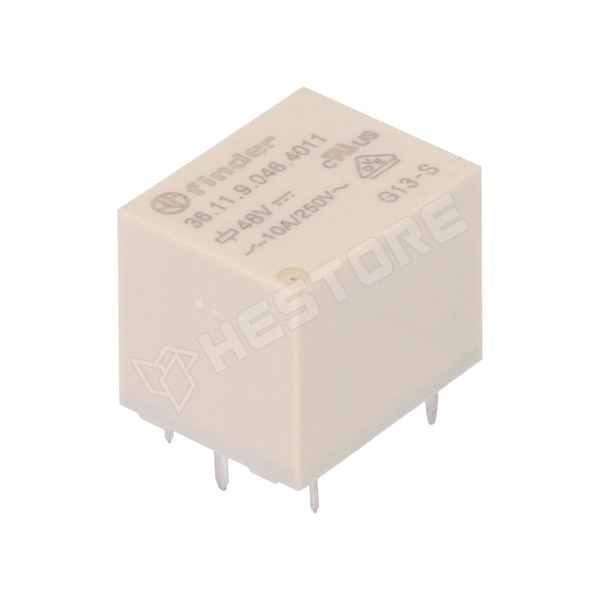

36.11.9.048.4011

Relay, SPDT, 48V DC, 10A / 250V AC, 10A / 30V DC

Manufacturer partno	36.11.9.048.4011
Manufacturer	FINDER
Mounting	PCB
Terminal pitch	2mm
Operating temperature	-40...85°C
Body dimensions	19x15.5x15.5mm
Contact material	AgSnO₂
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	48V DC
Contact current max.	15A
Switched voltage	max. 220V DC, max. 250V AC
Relay variant	miniature
Coil resistance	6400Ω
Coil voltage min.	36V DC
Coil voltage max.	62.4V DC
Coil power consumption	400mW
Relay series	36.11
DC contacts rating @R	10A / 30V DC
AC contacts rating @R	10A / 250V AC
Insulation class	PCB

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.438.35

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 2.834
5+	€ 2.315
10+	€ 2.224
20+	€ 2.160
50+	€ 2.088

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 2000
