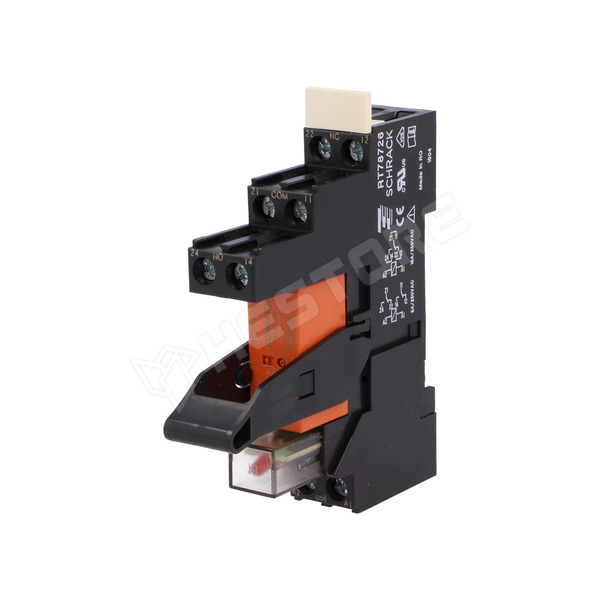

RT3S4LC4

Relay, SPDT, 24V DC, 16A / 250V AC, 16A / 30V DC

Manufacturer partno	4-1415073-1
Manufacturer	TE Connectivity
Mounting	DIN
Operating temperature	-25...85°C
Body dimensions	77x15.8x69mm
Body dimensions	77x15.8x69mm
Leads	screw terminals
Max. operating current	16A
Contact material	AgNi 90/10
Contacts configuration	SPDT
Kit contents	socket RT78726, indication module PTML0024, ejector RT17017, RT314024 relay, description plate RT17040
Type of relay	interface, interfész relé
Rated coil voltage	24V DC
Switched voltage	max. 300V DC, max. 440V AC
Relay variant	Relay set
Relay series	RT
DC contacts rating @R	16A / 30V DC
AC contacts rating @R	16A / 250V AC
Insulation class	DIN

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.438.20

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	5 833 Ft
5+	5 435 Ft
10+	5 321 Ft
20+	5 219 Ft
50+	5 074 Ft
