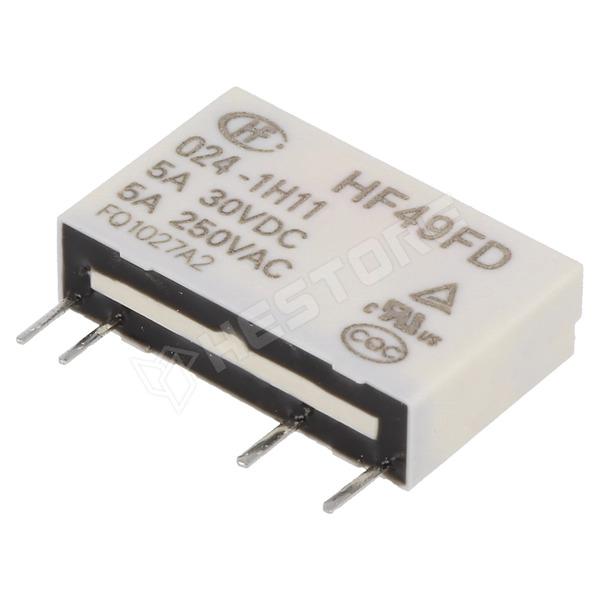

HF49FD-024-1H11

Relay, SPST-NO, 24V DC, 5 A / 250 VAC, 5 A / 30 VDC, Number of pins: 4

Manufacturer	HONGFA RELAY
Length	20mm
Mounting	PCB
Number of pins	4
Width	5mm
DC contacts rating	5 A / 30 VDC
Contact material	AgNi
Contacts configuration	SPST-NO
AC contacts rating	5 A / 250 VAC
Height	12.5mm
Rated coil voltage	24V DC
Relay variant	miniature
Release time	5ms
Coil power consumption	120mW

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.437.80

Add to favorites

Quantity (pcs):

Packing:
100 pcs / tube

Unit price excl. VAT

1+	958 Ft
5+	759 Ft
10+	726 Ft
20+	703 Ft
50+	679 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
