Main category » Power installations » DIN rail terminals »

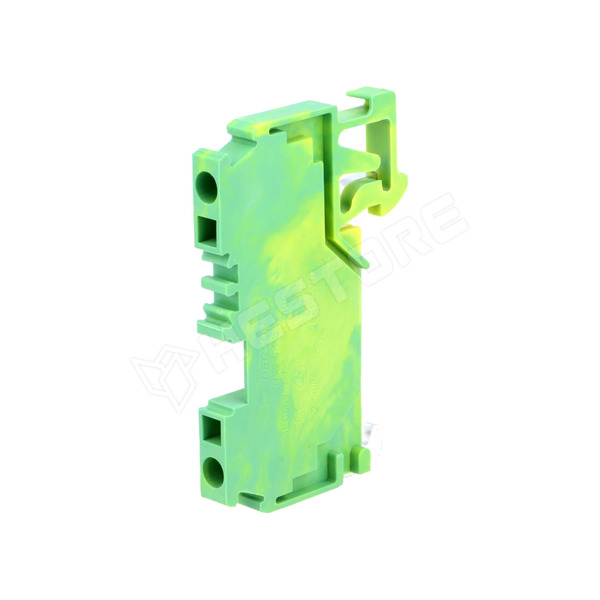

WS2.5-PE

Terminal block, rail, 0.2...2.5mm², Number of ways: 1, Number of terminals: 2

WS2.5-PE / Terminal block, rail, 0.2...2.5mm<sup>2</sup>, Number of ways: 1, Number of terminals: 2 (WS2.5-PE-01P-1C-00A(H) / DEGSON ELECTRONICS)

Manufacturer partno	WS2.5-PE-01P-1C-00A(H)
Manufacturer	DEGSON ELECTRONICS
Colour	yellow-green
Length	53mm
Number of terminals	2
Electrical mounting	spring clamp
Width	5mm
Number of ways	1
Wire size	0.2...2.5mm²
Height	35.5mm
Connector series	WS
Wire cross section	0.2...2.5mm²
Type of splice terminal	rail
Mounting rail size	TS35

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.437.36

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	588 Ft
5+	411 Ft
10+	383 Ft
20+	366 Ft
50+	351 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 500
