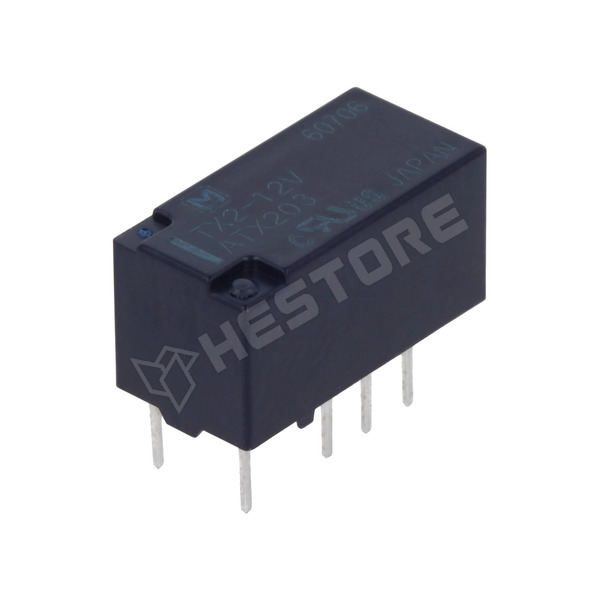

TX2-12V

Relay, DPDT, 12V DC, 2A / 30V DC

Manufacturer partno	TX2-12V
RoHS	yes
Manufacturer	PANASONIC
Mounting	PCB
Operating temperature	-40...85°C
Body dimensions	15x7.4x8.2mm
Body dimensions	15x7.4x8.2mm
Contact plating	gold-plated
Mechanical durability	100000000 cycles
Contact material	silver alloy
Contacts configuration	DPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	2A
Switched voltage	max. 220V DC
Relay variant	subminiature, signal
Coil resistance	1028Ω
Coil voltage min.	9V DC
Coil power consumption	140mW
Relay series	TX
Coil current	11.7mA
DC contacts rating @R	2A / 30V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.434.36

Add to favorites

Quantity (pcs):

Packing:
40 pcs / tube

Unit price excl. VAT

1+	626 Ft
5+	441 Ft
10+	413 Ft
20+	395 Ft
40+	379 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 7500
10-15 workdays	> 25000
