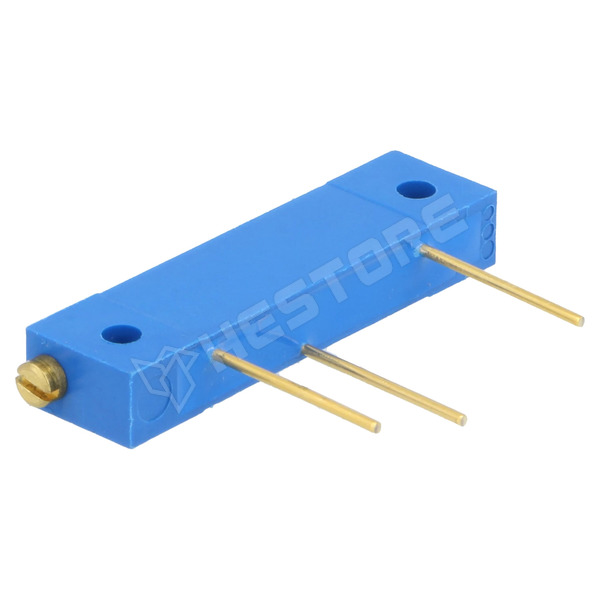

3057Y-1-103

Potenciométer, többfordulatú, 10K, 1W

Manufacturer partno	057Y-1-103
RoHS	yes
Manufacturer	BOURNS
Power	1W
Resistance	10kΩ
Characteristics	linear
Mounting	THT, screw
Tolerance	±5%
Terminal pitch	17.8x2.54mm
Operating temperature	-55...150°C
Body dimensions	31.75x8x4.9mm
Temperature coefficient	50ppm/°C
Type of potentiometer	mounting
Number of electrical turns	22
Track material	wire
Potentiometer standard	31,75mm
Min. insulation resistance	1000MΩ
Mounting holes pitch	25.4mm
Panel cutout diameter	2.3mm
Kind of potentiometer	multiturn

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.431.18

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	14 515 Ft
5+	13 760 Ft
10+	13 505 Ft
20+	13 260 Ft
50+	12 902 Ft
