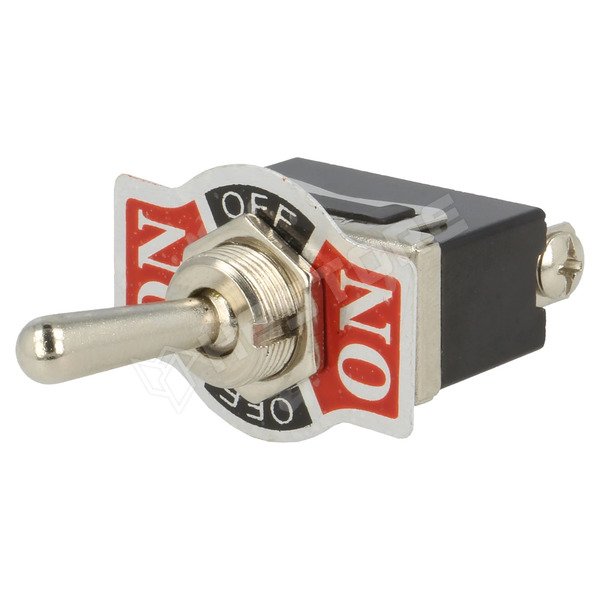

KN3(C)103AA3

Switch, toggle, SP3T, ON-OFF-ON, 10A / 250VAC

RoHS	yes
Operating temperature	-25...85°C
Body dimensions	29x15.8x19mm
Mounting hole diameter	Ø12.2mm
Related items	TSPC02
Leads	M3 screws
Type of switch	toggle
Stable positions number	3
Number of positions	3
Switching method	ON-OFF-ON
Contacts configuration	SP3T
Max. contact resistance:	50mΩ
Knob height	17.5mm
Electrical life	10000 cycles
AC contacts rating @R	10A / 250V AC
Kind of toggle	round, round

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.427.31

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	$ 1.780
5+	$ 1.236
10+	$ 1.155
20+	$ 1.105
50+	$ 1.058

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 500
