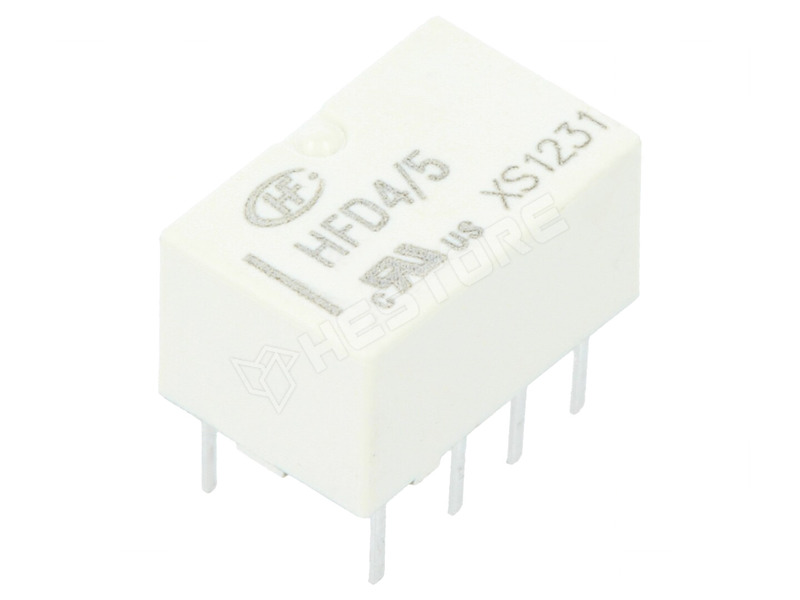

HFD4/5

Relay, monostable, 5V, 2A

Manufacturer partno	HFD4/5
Manufacturer	HONGFA RELAY
Mounting	PCB
Terminal pitch	2.2mm
Operating temperature	-40...85°C
Body dimensions	10x6.5x5.4mm
Contact material	AgNi + Au
Contacts configuration	DPDT
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	2A
Switched voltage	max. 220V DC, max. 250V AC
Relay variant	subminiature, signal
Coil resistance	178Ω
Coil voltage min.	3.75V DC
Coil voltage max.	7.5V DC
Operate time	3ms
Release time	3ms
Coil power consumption	140mW
Contact resistance	100mΩ
DC contacts rating @R	2A / 30V DC
AC contacts rating @R	0.5A / 125V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.426.26

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	990 Ft
5+	790 Ft
10+	756 Ft
20+	733 Ft
50+	707 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
10-15 workdays	> 10000
