I15KV530K-B

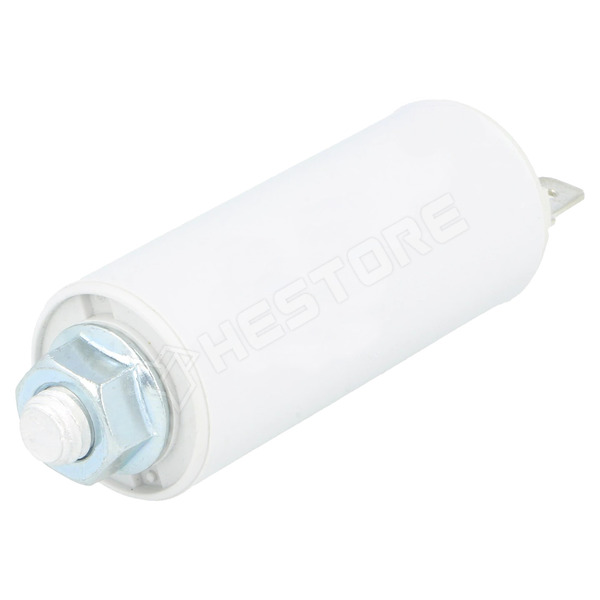

Motor capacitor, motors, run, 3µF, 450V, Ø25x58mm, 6,4x0,8mm connectors

Manufacturer partno	I15KV530K-B
RoHS	yes
Manufacturer	MIFLEX
Mounting	M8 screw
Tolerance	±10%
Type of capacitor	polypropylene (PP)
Capacitance	3µF
Operating voltage	450V
Operating temperature	-25...70°C
Body dimensions	Ø25x58mm
Service life	10000h
Capacitors series	MKSP-5P
Capacitor application	motors, run
Leads	6,4x0,8mm connectors
Mounting	M8 screw
Version	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.426.21

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 587 Ft
5+	1 363 Ft
10+	1 319 Ft
20+	1 286 Ft
50+	1 246 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 150
