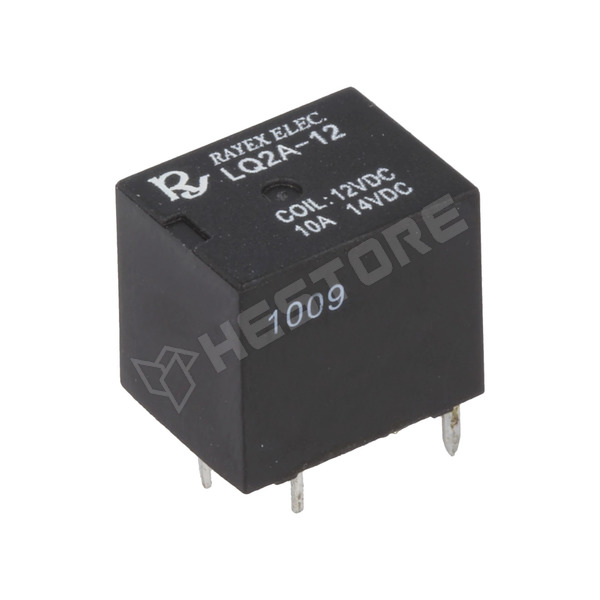

LQ2A-12

Relay, DPST-NO, 12V DC, 10A / 14V DC

Manufacturer partno	LQ2A-12
RoHS	yes
Manufacturer	Recoy/RAYEX ELECTRONICS
Weight	6g
Mounting	PCB
Operating temperature	-30...85°C
Body dimensions	16x12.5x14mm
Leads	for PCB
Mechanical durability	10000000 cycles
Contacts configuration	DPST-NO
Electrical life	100000 cycles
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	10A
Relay variant	automotive
Coil resistance	180Ω
Operate time	7.2ms
Release time	1.2ms
Relay series	LQ
Contact resistance	100mΩ
Coil current	66.7mA
DC contacts rating @R	10A / 14V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.425.16

Add to favorites

Quantity (pcs):

Packing:
200 pcs / carton

Unit price excl. VAT

1+	$ 1.598
5+	$ 1.062
10+	$ 0.984
20+	$ 0.937
50+	$ 0.895
