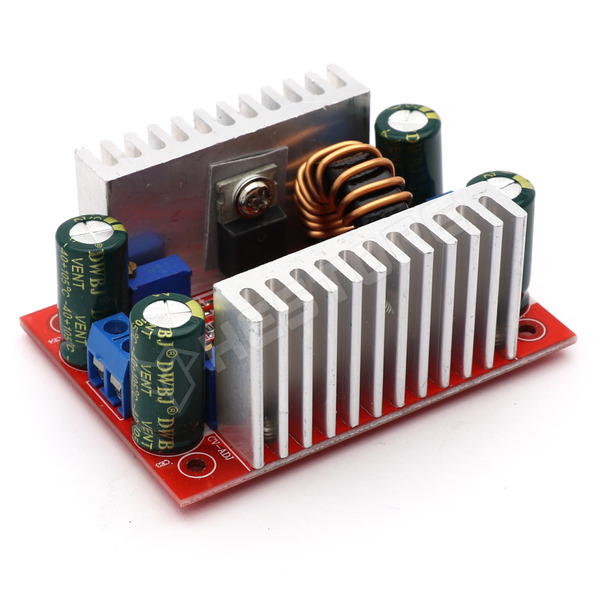

STPUP-400W

DC-DC step up power supply module, 400W

Power	400W
Output voltage	adjustable, 10...60V DC
Operating temperature	-40...85°C
Output current	12A, adjustable
Type of power supply	switched-mode
Efficiency	96%
Input current	15A
Dimensions	67 x 48 x 28mm
Output connector type	screw terminals
Operating frequency	150kHz
Input connector type	screw terminals
Input voltage range	8.5...50V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.424.78

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 928 Ft
5+	1 690 Ft
10+	1 641 Ft
20+	1 602 Ft
50+	1 553 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
10-15 workdays	> 2000
